This is not a GNSS receiver...

it's much more.


High-end GNSS receiver, highly simple to use.

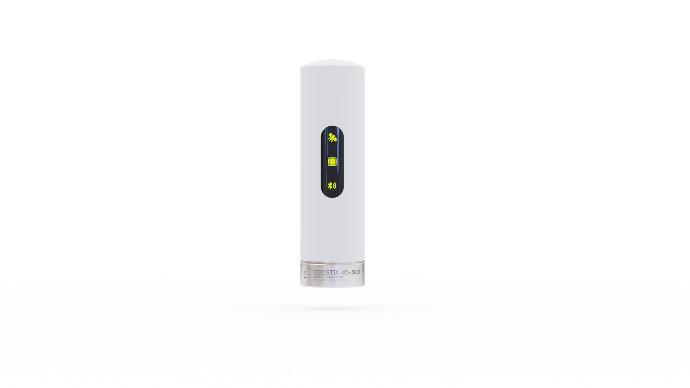

The GEOSTIX is a GNSS receiver, designed as simply as possible to combine lightness and robustness.

IGN logo

Geostix, a product from the IGN research laboratory.

The GEOSTIX has been designed by IGN, the french mapping agency.

225 g

The GEOSTIX is one of the lightest high-end GNSS receivers in its category. 225 g only.

20 h

Up to 20 hours of autonomy (depending on the model).

14 cm

14 cm high, 4 cm diameter. The GEOSTIX really fits in your pocket.

3+

The GEOSTIX captures more than 3 GNSS frequencies to be at the cutting edge of GNSS technology.




GEOSTIX

Extend it as you want.

Every GEOSTIX has an electro-mechanical waterproof connector that allows you to plug additional sensor layers.

Discover more

One single form factor:

the GNSS receiver of your choice.

GEOSTIX-M8

GEOSTIX-M8

Single-frequency GNSS


RTK

# of channels: 72

Satellites tracking:

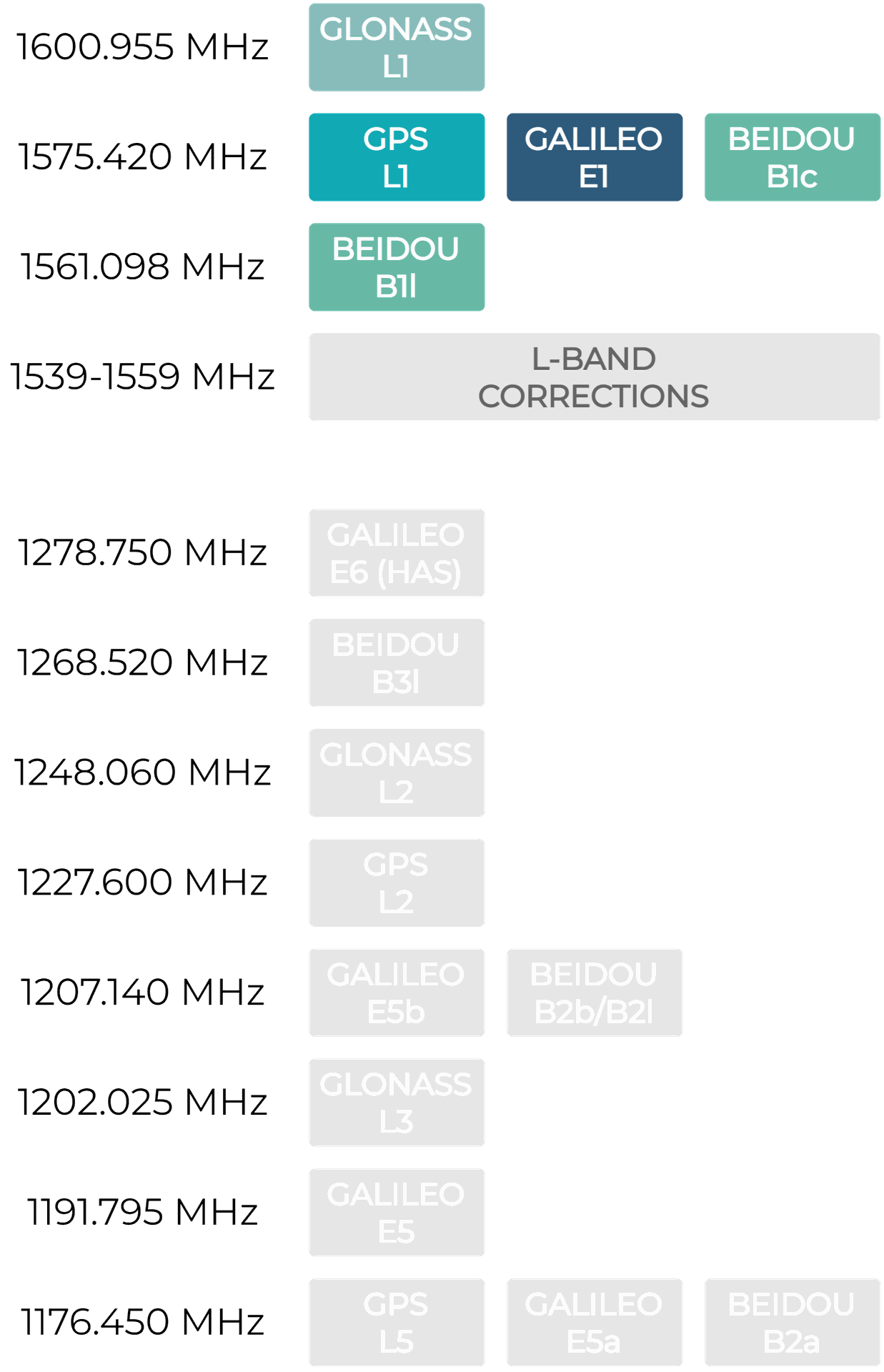

Table listing GEOSTIX-M8 operating GNSS frequencies

Autonomy: 10 hours

Size: 140 x 40 mm

Weight: 225 g


More informations

GEOSTIX-F9

GEOSTIX-F9

Dual-frequency GNSS



RTK, L-band (optional)

# of channels:  184

Satellites tracking:

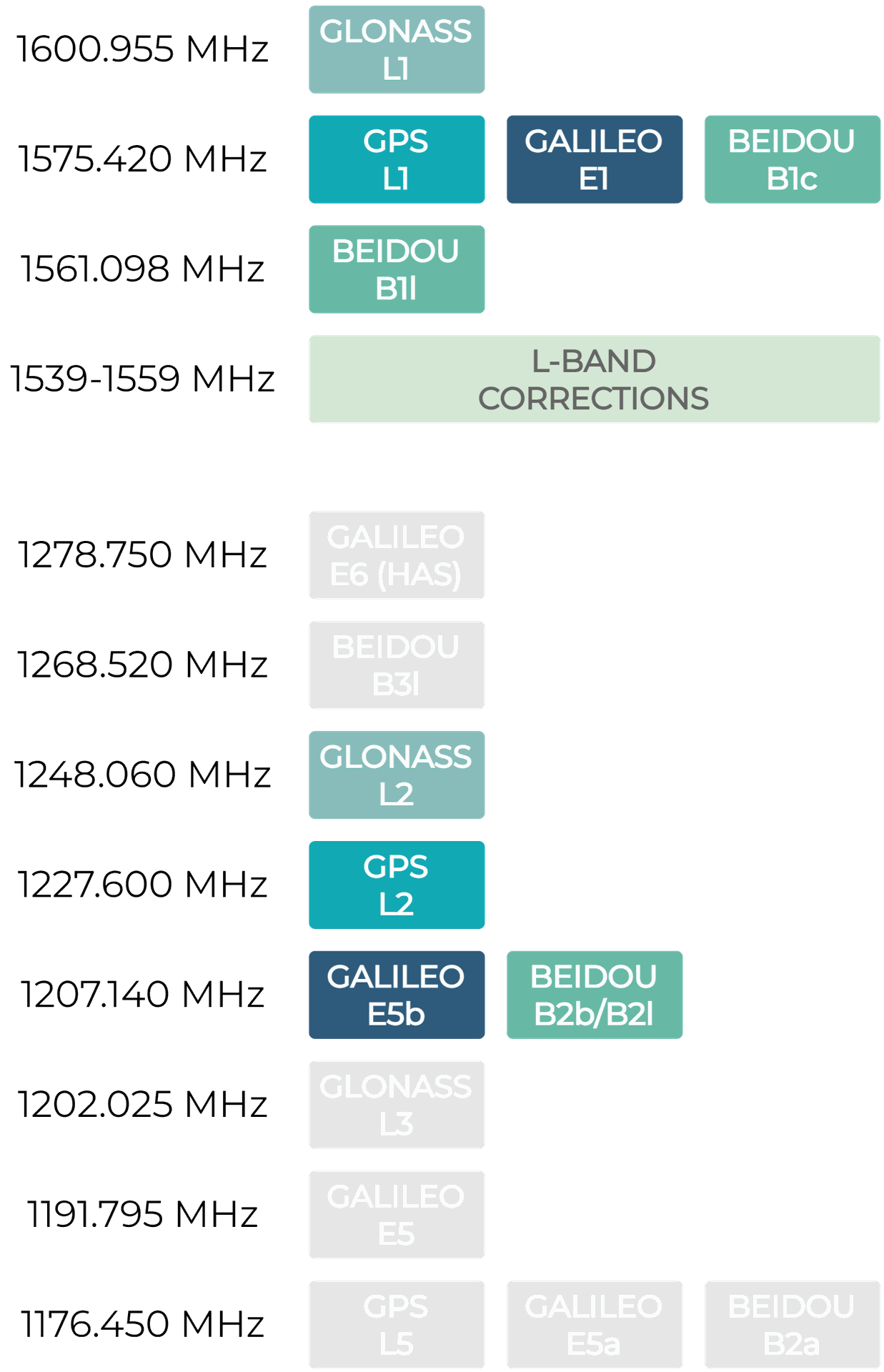

Table listing GEOSTIX-F9 operating GNSS frequencies

Autonomy: 14 hours

Size: 140 x 40 mm

Weight: 225 g


More informations

GEOSTIX-X5

GEOSTIX-X5

Triple-frequency GNSS



RTK, L-band

# of channels: 448

Satellites tracking:

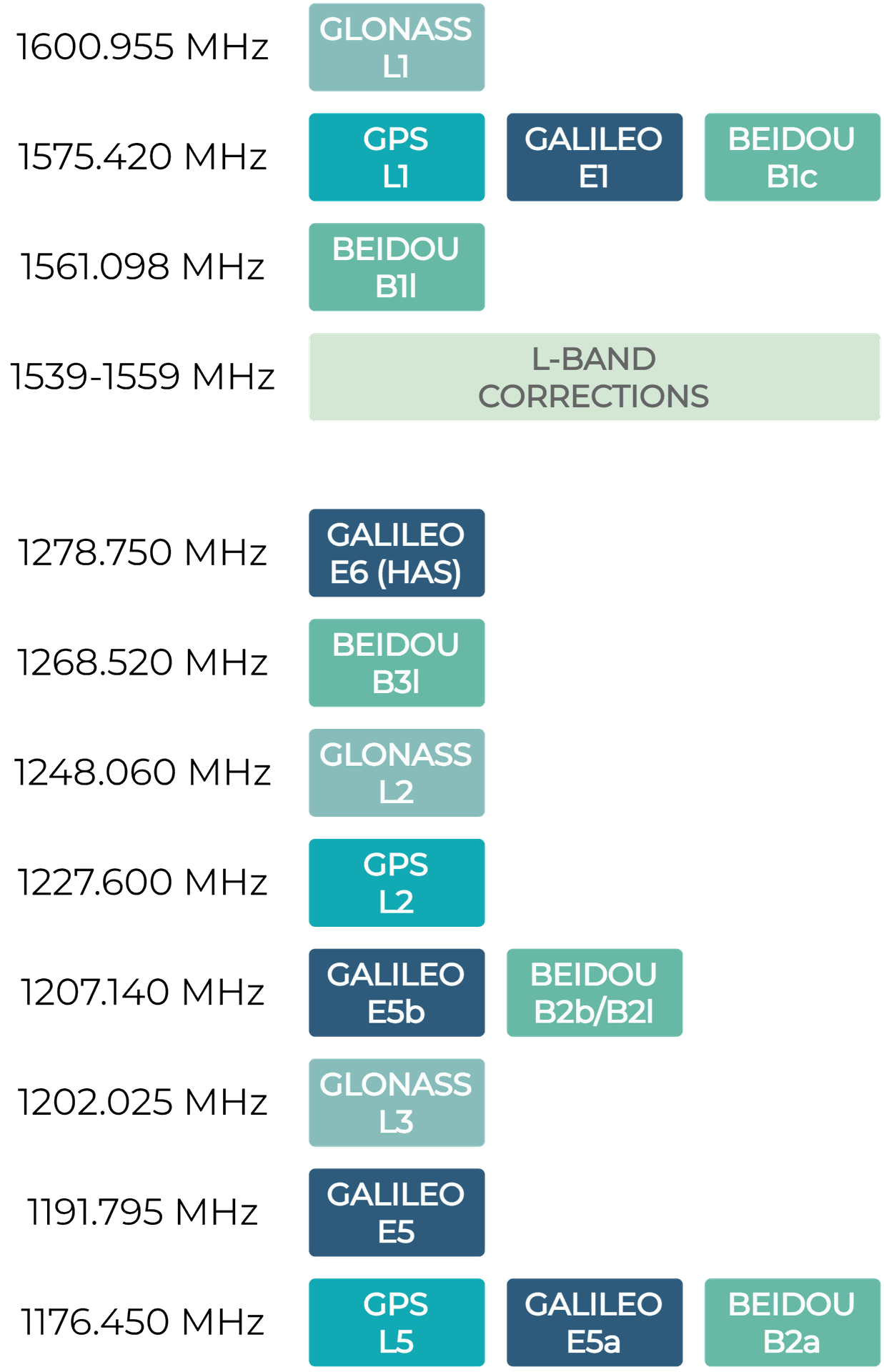

Table listing GEOSTIX-X5 operating GNSS frequencies

Autonomy: 8 hours

Size: 140 x 40 mm

Weight: 225 g


More informations
